BAND SAWING MACHINE
Rigid and simple construction machine with zero degree blade angle.
| product name |
SⅡ4560 |
SⅡ5570 |
|
|---|---|---|---|

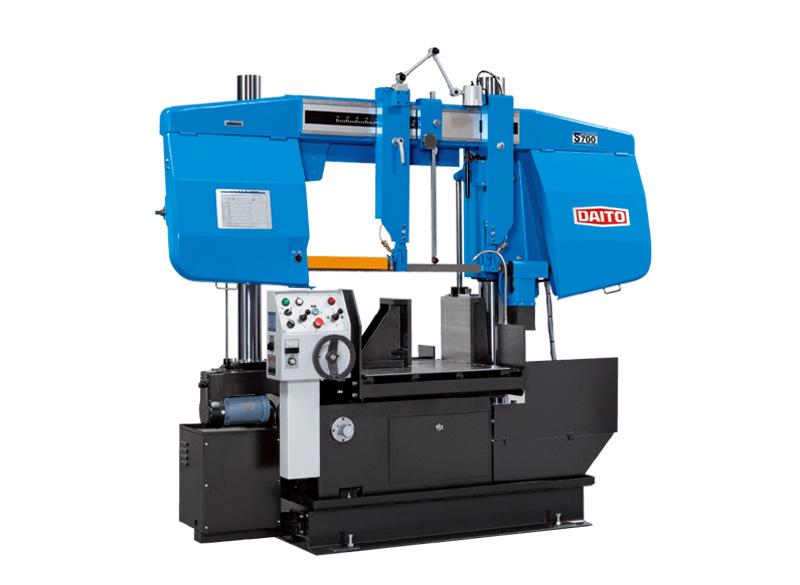

| product photography |  |
 |
|
| Max. Capacity(W×H) |  |
17 3/4" | 21 5/8" |
 |
17 3/4" × 17 3/4" | 19 5/8" × 19 5/8" | |
 |
24 1/2" × 17 3/4" |
27 1/2" × 19 5/8" | |
 |
- | - | |
| Overall Dimentions(W×D×H) | - |
- |
|
| Machine Weight | - | - | |
Rigid Double Columns
The saw frame is guided by rigid double columns. Unchanged saw blade angle offers "corner cut-off" applications.
For "Corner cut-off" Application
The saw frame stops at a adjusted position for "corner cut-off" application.
Amplifying Valve
The amplifying valve accurately controls the feed rate by amplifying cutting resistance for efficient cut.
Bottom stopper for "corner cut-off" application.
Mist applicator which sprays cutting fluid to saw blade edges.
The roller table to support the long material.
This unit is attached to a roller table to feed the work piece.
From each machine to total automation, contact us freely.
