NA700

Bundle Cut Specialist

The yoke style vertical clamps are designed for bundle cuts.

product name		NA700

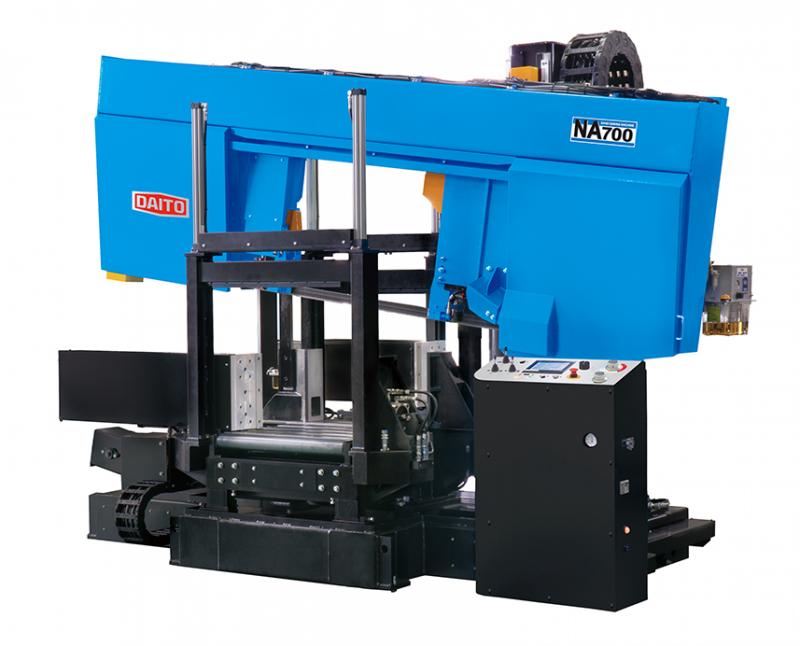

product photo
Max. Capacity(W×H)		25 7/8"
		23 1/2"
		27 1/2" × 23 1/2"
		27 1/2" × 14 1/2"
Overall Dimentions (W×D×H)		144 1/8" × 99 1/4" × 108 1/8"
Machine Weight		11,244 lbs

FEATURE

NＡ700

Accurate Bundle Cutting EASY BLADE CHANGE
with Yoke Type Vertical Vises

DAITO’s NA700 saw is a fully automatic model that is specially　designed for bundled pipes/profiles. The yoke type vertical vises, which does not require adjustment, is held in place over the entire width of the material and securely held in place.Bundled materials are cut with high accuracy and efficiency, contributing to improved productivity.

EASY BLADE CHANGE

The saw blade can be changed smoothly because nothing interferes with the saw blade.The insert fastening switch for securing the blade is close at hand so the blade can be replaced without forcing the saw blade into excess bending positions.

DOES NOT RUB THE SURFACE OF THE MATERIAL

The index/main and front vises automatically open from both sides when feeding material.

EASY PROGRAM ENTRY

The LCD touch panel accepts cut length, cut piece and the shape.

YOKE TYPE VERTICAL VISES

Three yoke type ver tical vises are installed for bundled material; in addition to the index/main/front vises. (Front vertical vise is optional.)

SHUTTLE FEED

The Indexing vise shuttle system stroke is 800mm. Accurate positioning is performed even when bundle cutting.

LINKED SAW GUIDE

The movable saw guide is linked with the movable vise jaw position to be as close to the work piece as possible. This ensures optimal cutting conditions.

USER FRIENDLY CONTROL PANEL WITH EASY SETUP

Setup for a wide range of cutting data and materials is quite simple and ef f icient with this model. Programming during cutting cycles can be done for quick work setup.

MATERIAL TOP DETECTOR

The optical material top detector which checks material top surface is maintenance-free unlike mechanical sensors.

VISE PRESSURE REGULATOR

The vise pressure can be adjusted for thin wall material.

CLEAR LIGHT BEAM

The cutting position is projected by the strong LED; the shadow is even clear in a bright working environment.

RAKER TYPE CHIP CONVEYOR

The raker type chip conveyor endlessly rakes chips out while allowing most cutting fluid to drain back into the reservoir.

INDEXING TABLE WITH ROLLERS

The table rollers are closely spaced to feed even the heaviest workpiece smoothly.

OPTION

MIST APPLICATOR

Clean cutting environment is enabled with the mist applicator which sprays cutting fluid to saw blade edges. An air source needed.

BLADE DEVIATION DETECTOR

The blade deviation detector monitors the blade for any minor deviation to halt the machine during cutting.

FRONT VERTICAL VISE

Safe and efficient operation is possible when cutting the rear end. The front vise suppressed vibration of the material during cutting to prevent chattering and chipping of the saw bade.
